Submersible titanium electric heaters

Made of high impact resistant titanium. Highly corrosion-resistant, able to be used in sea-water safely. Fully submersible, with resin sealed connection to cable, Include T and U type.

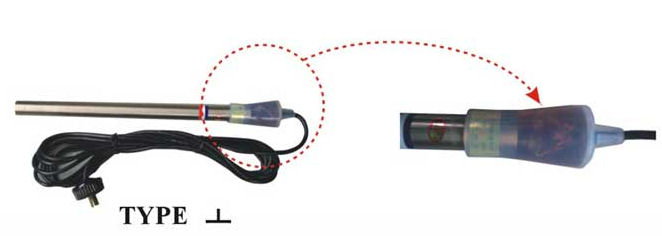

heater-T
The cable connection to the titanium heater is sealed in resin and encased in a soft plastic seal. The heater is connected to a control panel. A Pt100 probe from the control panel to the same tank is the temperature sensor that regulates the on/off electrical contacter, controlling temperatures within 1 degree Celsius in a properly mixed tank. Place the sensor away from the heater for better temperature control.

Please Note: Titanium heater must be placed in water and let water cover over the indicated line on heater before switched on to prevent damage from high temperature. A 3 kW heater will heat an indoor tank of 5 to 7 m3 in South African temperate conditions. Work on 0.5 kW of heating per m3 of water.

Generally in stock is the single phase, 3kw E01A07 and 1 kilowatt E01A09.

heater-table
1kw-titanium-heater-element
1 kilowatt titanium heater element: the element part that needs to be immersed is 35cm long.

3 kW elements are 74cm long and as fully submersible, can be laid horizontally or vertically.

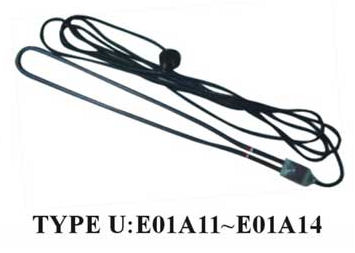

heater-U



Electrical control boxes

3kw-electric-control-box
The above control box can carry 4 x 3kw elements, and a single PT100 sensor.

Heater Control box specifications:

heater-element-control-box-types
Boxes with single PT100 control

Single-PT100-electric-control-boxes

Boxes with double PT100control

Double-PT100-electric-control-boxes
The dual or double control box has two independent units installed and so two PT100 temperature sensors.

Economy control systems for 2 kilowatt and lower

MH-2000 AC90V~250V electronic thermostat with LED digital display. This temperature controller is suitable for the 2 kW and smaller heater elements

2kw-heater-controller
The PT100 control part is 1.2m long
2kw-digital-heater-controller-thermostat
