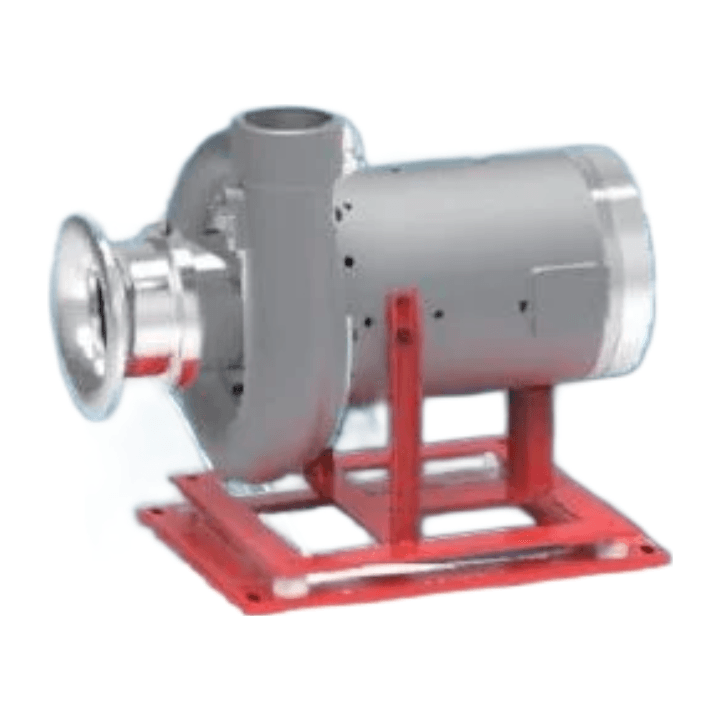

An air suspension blower is a type of blower in which, as the blower rotor rotates at high speed, a dynamic pressure effect is generated between the rotor and the surface of the foil bearing, forming a high-pressure air film that lifts the rotor.

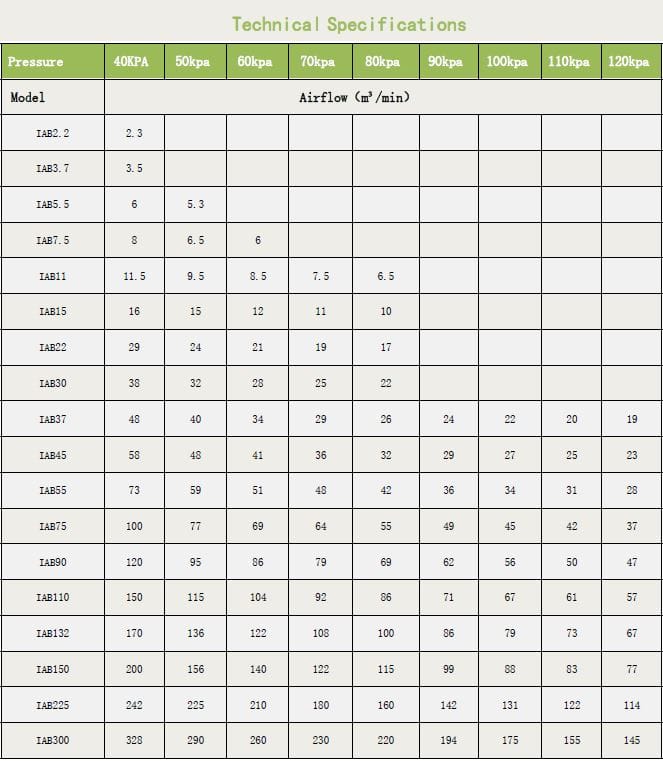

Core Technical Parameters:
1. Rated flow measurement conditions:101.325kPa, 20℃, 65%RH
2. Noise test conditions: Measure at a distance of 1 meter from the blower
3. Outlet pipeline flange pressure grade: PN10
4. Airflow tolerance range:+5%
5. For detailed information, please refer to the specification sheet of the blower series products
Key Features of Suspension Blowers
Dynamic Air Bearing Technology
- Contact-free operation eliminates mechanical wear and lubrication requirements.
- Delivers high-speed, high-precision, and highly reliable performance.
- Simple bearing design with no need for backup power protection during shutdown.
High-Efficiency 3D Centrifugal Impeller
- Advanced three-dimensional flow design achieves impeller efficiencies of up to 80%.
- Manufactured using aerospace-grade aluminum alloy for exceptional strength, durability, and lightweight performance.
High-Speed Permanent Magnet Synchronous Motor (PMSM)
- Wide stepless speed control range enables optimal performance across varying operating conditions.
- Provides smooth, vibration-free operation with low noise levels.
- Achieves motor efficiency of up to 97% with no rotor losses.
- Compact and lightweight design with a simple, robust structure.
Intelligent Variable Speed Control System
- Automatically adjusts operating speed according to process demand to maintain maximum efficiency.
- Advanced controller efficiency exceeds 97%.
- Intelligent monitoring and control optimize energy consumption and system performance.

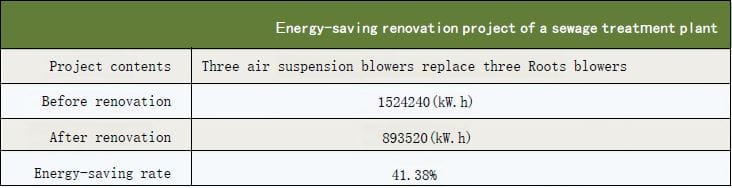

Significant Energy Savings

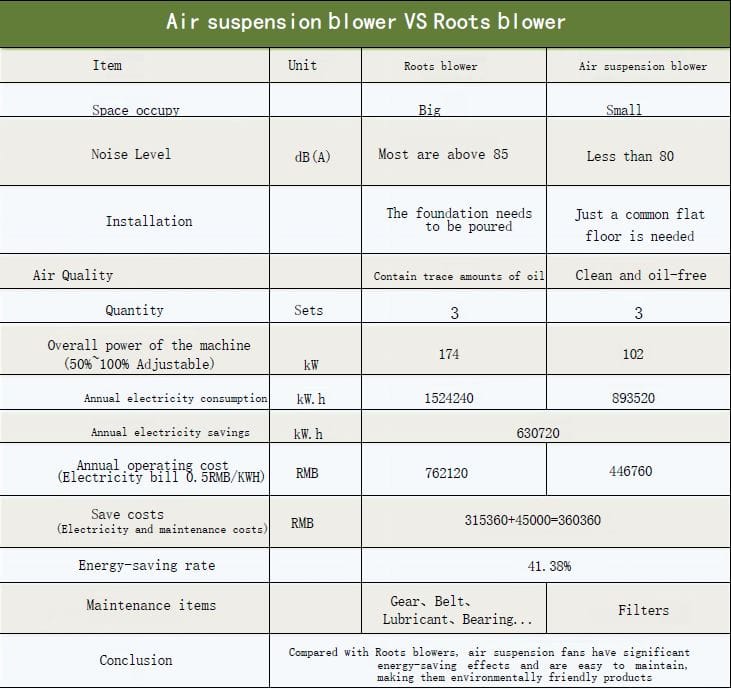

- Reduces energy consumption by more than 30% compared to conventional Roots blowers.
- Improves overall operational efficiency and lowers running costs.
Minimal Maintenance Requirements
- No lubrication system is required.
- Routine maintenance is limited primarily to periodic filter replacement.
Extended Service Life
- Friction-free air bearing technology significantly reduces wear and mechanical degradation.
- Expected operational lifespan of 15–20 years under normal operating conditions.
100% Oil-Free Operation
- Eliminates the need for oil lubrication and associated maintenance.
- Prevents oil contamination, ensuring clean air delivery and protecting water quality.
Environmentally Friendly and Low Noise
- Operating noise levels can be as low as 80 dB or below.
- Creates a cleaner, quieter, and more comfortable working environment.
Compact and Easy Installation
- Skid-mounted design minimizes the installation footprint.
- Requires no special foundation construction, reducing installation time and costs.
- Simple installation enables faster commissioning and startup.

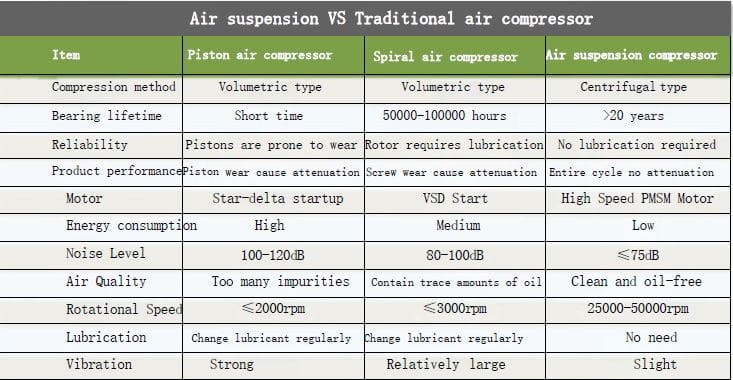

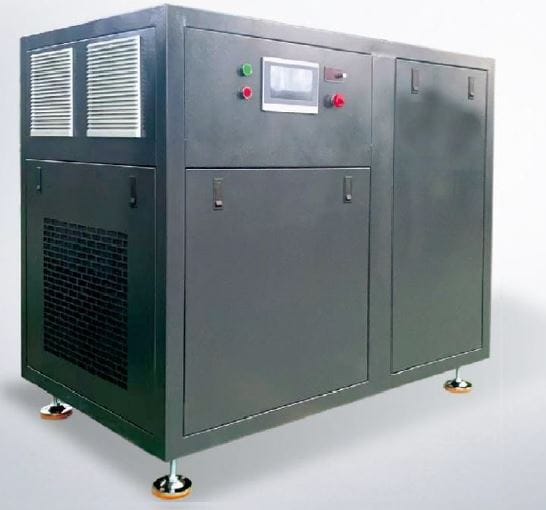

Air Suspension Compressor
The air suspension compressor drives the gas to rotate at high speed by the impeller, generating centrifugal force in the gas. Due to the difuser flow of the gas in the impeller, this enables the flow rate and pressure of the gas after passing through the impeller to be increased, continuously producing compressed air.

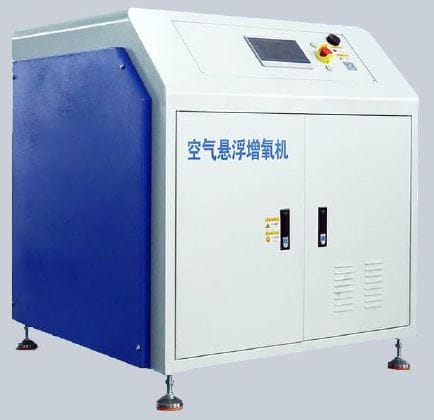

Air Suspension Aerator
Features
- Air suspension bearings, frictionless and long service life
- Centrifugal blower, high efficiency and low noise
- Integrated controller, high precision and low cost
- Permanent magnet synchronous motor, low loss and vibration-free

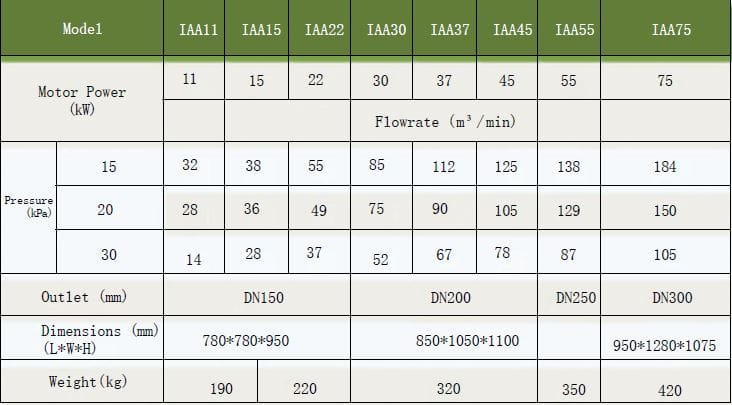

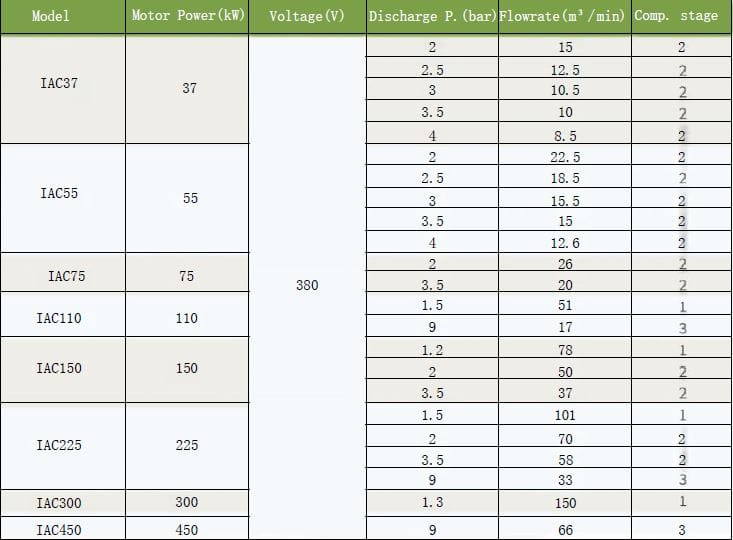

Parameters
