Ecotao supplies the complete spectrum of industrial and commercial air supply equipment for South Africa — from small aquaculture diffuser blowers to large municipal aeration systems.
How to Choose the Right Air Supply Technology
The single most important factor in blower selection is understanding your pressure requirement and flow requirement simultaneously. These two parameters together determine the correct technology family — not power rating alone. The table below maps application type to the correct technology and the relevant Ecotao product range.
| Application / Problem | Pressure Required | Correct Technology | Ecotao Range |
|---|---|---|---|
| Small fish tank or aquarium (≤0.5 m depth) | <80 mbar | Diaphragm blower | Diaphragm Blowers |
| Aquaculture RAS tank aeration (0.5–2 m) | 80–250 mbar | Side channel ring blower (1R) | Side Channel Blowers |
| MBBR / activated sludge wastewater (2–5 m) | 250–550 mbar | Side channel (2R) or roots blower | Side Channel · Roots Blowers |
| Large municipal wastewater (high volume) | 300–700 mbar | Multistage centrifugal or turbo blower | Multistage · Air Suspension |
| Dilute-phase pneumatic conveying | 150–400 mbar | Side channel (2R) or roots blower | Side Channel · Roots Blowers |

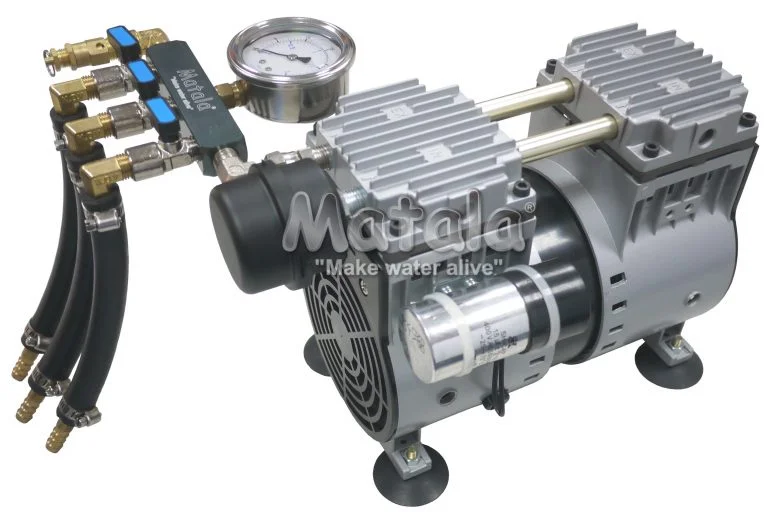

| Lake, dam or lagoon aeration / destratification | Site-specific | Surface aerator or subsurface blower + diffuser | Lake & Pond Aerators |
| Vacuum lifting, clamping, degassing | 100–400 mbar vacuum | Side channel (vacuum mode) or vacuum unit | Vacuum Systems |
| Corrosive gas / acid fume handling | Application-specific | Chemical-resistant blower (PVDF / PP) | Corrosive Air Blowers |
| Biogas / explosive atmosphere | Application-specific | ATEX-rated blower | Anti-Explosion Blowers |
| High-pressure compressed air (>1 bar) | >1,000 mbar | Rotary screw compressor | Screw Compressors |
| General ventilation, workshop extraction | <30 mbar | Low-pressure fan / axial fan | Low Pressure Fans |

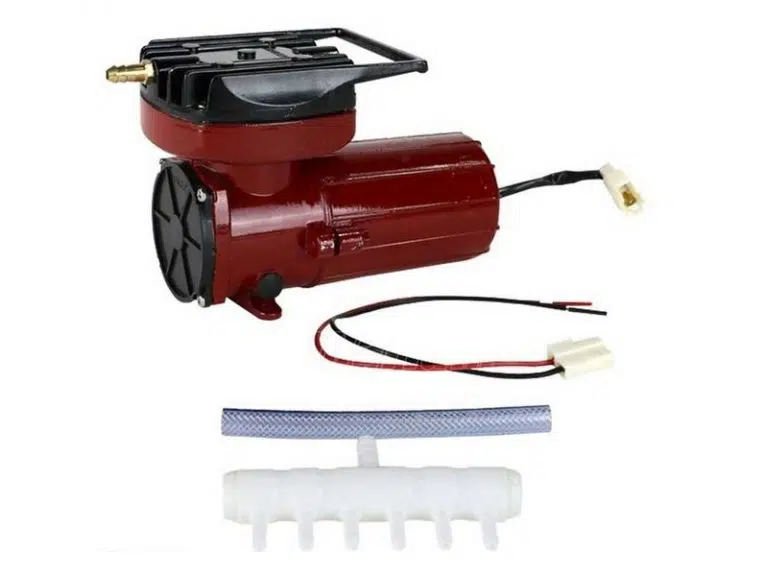

| Remote / off-grid / mobile aeration | Application-specific | 12V / battery-powered blower | 12V & Battery Blowers |

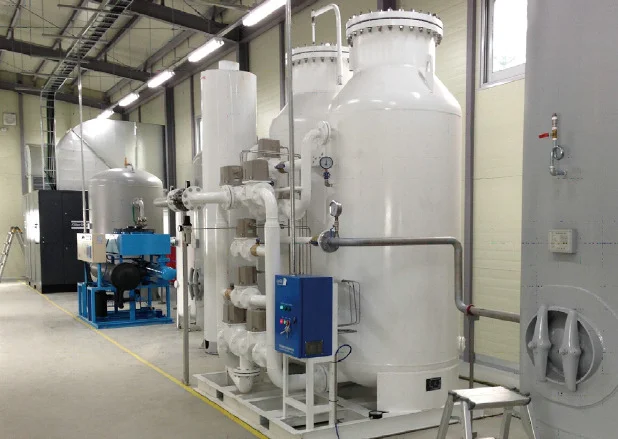

| On-site oxygen or nitrogen generation | N/A (gas generation) | PSA oxygen / nitrogen generator | Gas Production |
South Africa altitude note: All blower performance specifications are published at sea-level conditions. Sites above 1,000 m — including most of Gauteng, Mpumalanga and the Free State Highveld — require a volumetric flow correction. At 1,500 m above sea level, a blower must move approximately 20% more air by volume to deliver the same oxygen mass as at sea level. Ecotao can perform altitude-corrected sizing for your specific location — contact us with your GPS coordinates or confirmed altitude.
The Full Ecotao Air Supply Range
Understanding Blower Technology Differences
Choosing the wrong technology family — not just the wrong size — is the most common and costly mistake in aeration system design.
| Technology | Operating Principle | Airflow | Oil-free? | Typical Pressure | Best For |
|---|---|---|---|---|---|

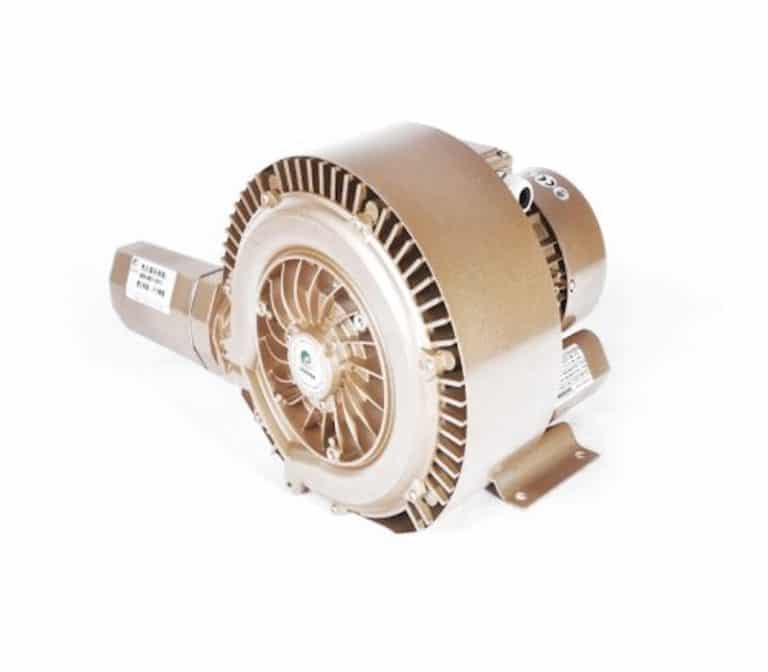

| Side channel (regenerative) | Impeller repeatedly accelerates air through a side channel; no contact | Smooth, pulsation-free | Yes | 50–500 mbar | Aquaculture, MBBR, conveying, vacuum |

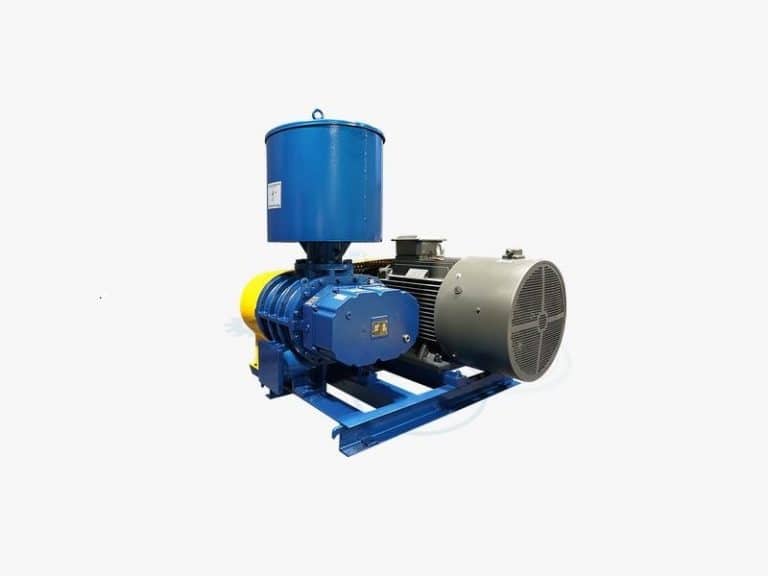

| Positive displacement (roots/lobe) | Meshing lobes trap fixed air volumes and displace them mechanically | Pulsed — needs silencer | Yes (oil-free variants) | 50–500 mbar | High-volume coarse aeration, biogas |

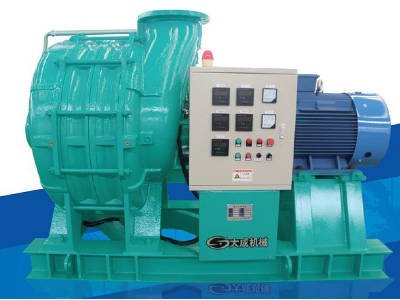

| Multistage centrifugal | Multiple impeller stages in series; kinetic energy converted to pressure | Smooth, continuous | Yes | 300–700 mbar | Large municipal WWTW |

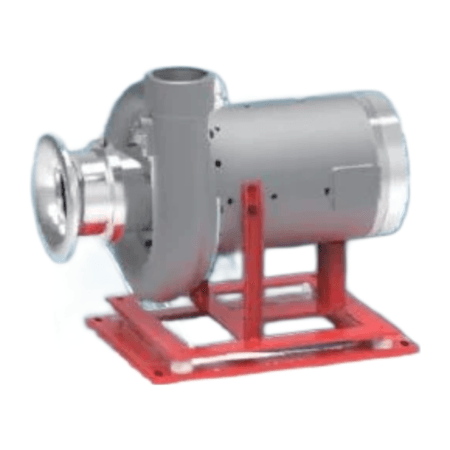

| Air suspension (turbo) | Single high-speed impeller on magnetic or air bearings; VFD-driven | Smooth, variable | Yes | 300–900 mbar | Energy-critical large plant |

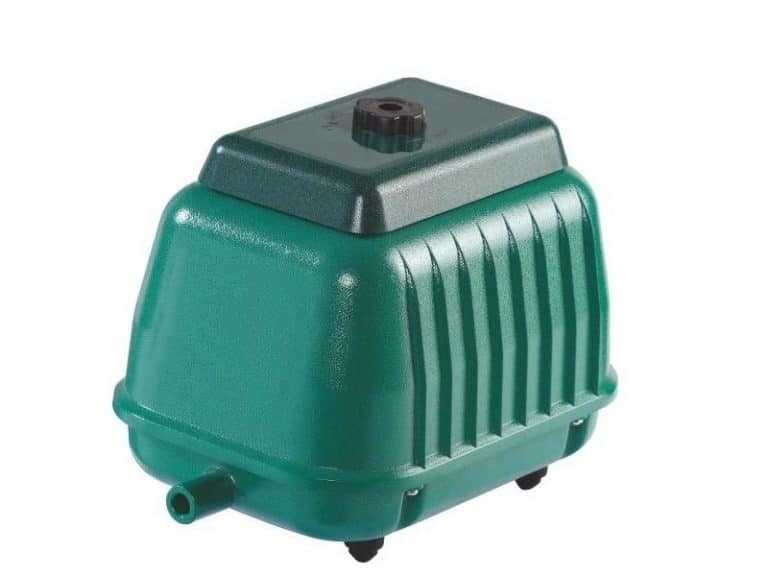

| Diaphragm | Reciprocating diaphragm driven electromagnetically | Pulsed | Yes | <80 mbar | Small tanks, aquariums, shallow ponds |

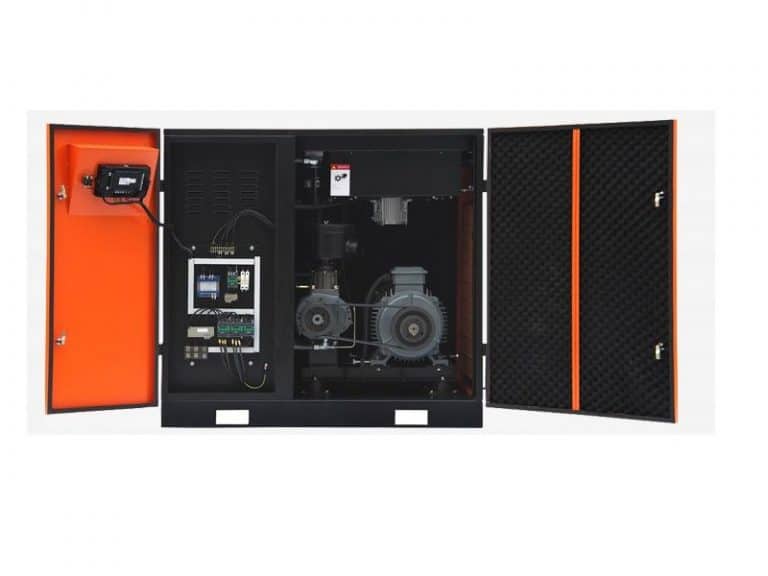

| Rotary screw compressor | Two helical rotors compress air in a progressively reducing chamber | Smooth, continuous | Oil-free or oil-injected | 1–13 bar | Tools, instruments, high-pressure process |
Blower and Diffuser: A System, Not Two Products

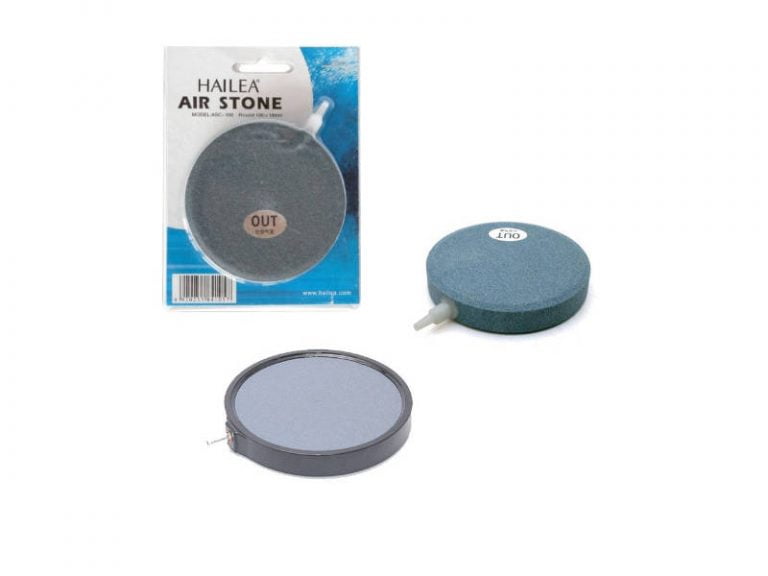

A blower and its diffuser must be selected together. Fine bubble membrane diffusers add approximately 30 mbar backpressure the blower must overcome, and the diffuser’s oxygen transfer efficiency determines how much airflow the system requires. Selecting a blower without specifying the diffuser leads to an undersized blower (insufficient dissolved oxygen) or an oversized one (wasted energy). Ecotao stocks matched diffuser and blower ranges and can specify complete systems as a package. See our Aeration Diffusers & Hose page.
