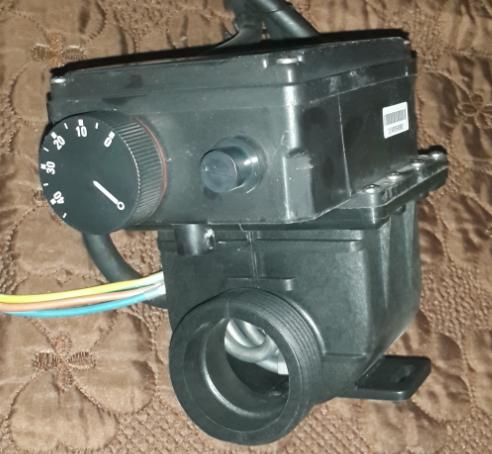

In-line heating elements
In systems that circulate water, in-line heating elements are useful. This can be connected inline before or after a tank or pool pump. Fittings are 50mm PVC.
Purchase online at the Ecotao store:
Spa/pool/bathtub inline 3kw heater-3
See this review on this Jacuzzi type in-line heater or spa heater:
https://www.heywandererblog.com/2019/01/hot-tub-diy-from-stock-tank-pool.html

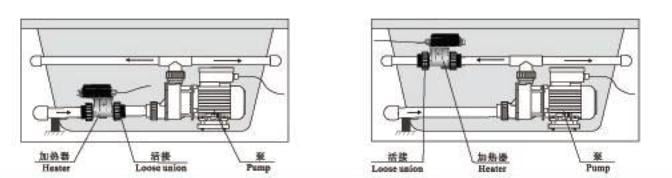

The heater connects inline to the pool pump and turns on when there’s enough water flow to trigger it.
Type of product: | Heater assembly |
Make and Model: | Chinese LX Flow type Heater. H30-RS1 |
Power: | Volts: 240vac |
Hz: 50/60 | |
KW: 3.0 | |
Amps: 13.4 | |
Specification | Sensor compatibility: Sensor built in, the heater is controlled by a thermoregulator on the side of the module. |
Material spec: Plastic | |
Required flow rate: Set by pressure switch, this switch will need to be pressurised, if it runs straight to a big bore out let with no bends, there will be no back pressure and it may not work | |
Compatible with: | Most Chinese spas with a small plumbing change or can be used as a remote heater on a bespoke project |
Connections / Fixings: | 1.5″ white plastic female sockets to connect to plumbing |
Dimensions: | Heater length: |
Heater Diameter: 50mm | |
Overall height: 120mm | |
Overall length complete: 340mm | |
Additional notes: | High limit thermal cut out built in. This unit is rated IPX5 and has CE approval. |
