PVC Valves



3-way-ball-valve

We supply the standard range of 16Bar PVC fittings, including valves. These uPVC pressure fittings are suitable for irrigation, potable water supply, chemical installation, water treatment, swimming pools, foodstuff industries. uPVC pressure fittings can be used with any make of pipe made to the same international standards.

The PVC fitting and valve maximum working pressure is 16kg/cm2 (227,6 PSI or 15.7 Bar) from – 20°C to 25°C.
Above + 25°C the working pressure decreases in a linear way down to 4kg/cm2 (56,9 PS) at + 60°C.

uPVC fitting temperature and pressure

uPVC fitting pressure and temperature table

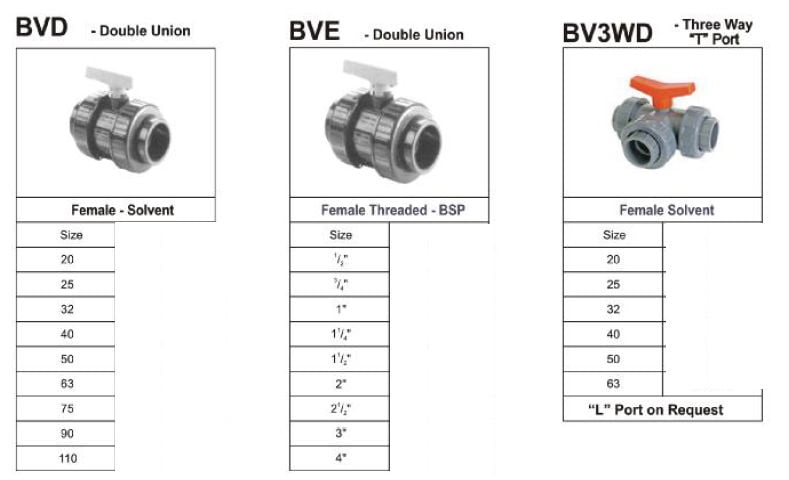

Double union valves, Three-way T port valves (BV3WD)

valve-double-union

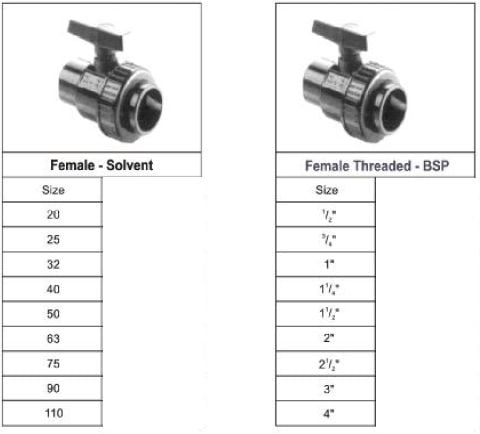

Single union valves

valve-single-union

Knife Valves (sizes in mm)

valve-knife
valve-knife2

Compact ball valves

valve-compact-ball

Air release valves

1” automatic and kinetic

2” automatic and kinetic

air-release

Diaphragm valves

valve-diaphragm

Float valves

float-valve

Flow valves (rotameters)

Butterfly valves

butterfly-valve2
butterfly-valve

Non return flap valves (double and single union) or swing check valves (o rings epdm)

Requires little space in piping system. Easy installation: wafer body slips between standard flanges. No gaskets required. Vertical and horizontal operation. Available with EPDM or Viton* O-rings. Excellent flow characteristics. Sizes from 75 mm to 225 mm (21/2- 8”). Available Standards: ISO/DIN, ANSI/ASTM. Do not install the valve at a distance lower than 5 x D of the pump out. Install with pipe and flange DIN PN 10.

non-return-flap
swing-check-valve1

Non return spring loaded valves

Check valve or non-return valve with solvent cement sockets with Stainless Steel Spring EPDM Seals.

double-union-spring-valve
nonreturn-valves
check-valve

Strainers

strainer
PVC-strainers
