Aquaponic Tanks

Aquaponics tanks

FRP fish culture tank

These indoor GRP fish tanks are painted and polished well, have elevated legs for drainage from bottom middle; tanks of other size (or customized size) or other material (PE, PP) are available.

PP fish culture tank

The aquaculture tank is made of PP materials to foster safe and healthy aquatic life growth, it can be in circular or rectangular shape, the size of the tank can be customized ranging from startup to large scale commercial farms, to make sure you get the right fish farming tank to meet your farm’s requirements.

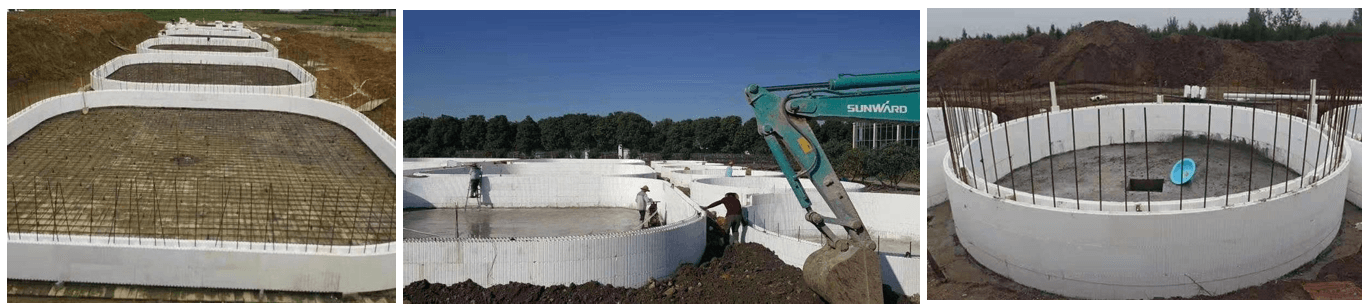

Modularized thermostat fish tank

The modular fish tank is newly developed for modern recirculation aquaculture system, indoor fish farm project. Fish tanks can directly be assembled by standard modules and then fill steel and cement into the modules. Large fish tank building has become a much easy work by using standard modules. Most importantly, the standard module is made of EPS material, thus water is well insulated and can be kept in constant temperature, it is especially useful in the cold areas.

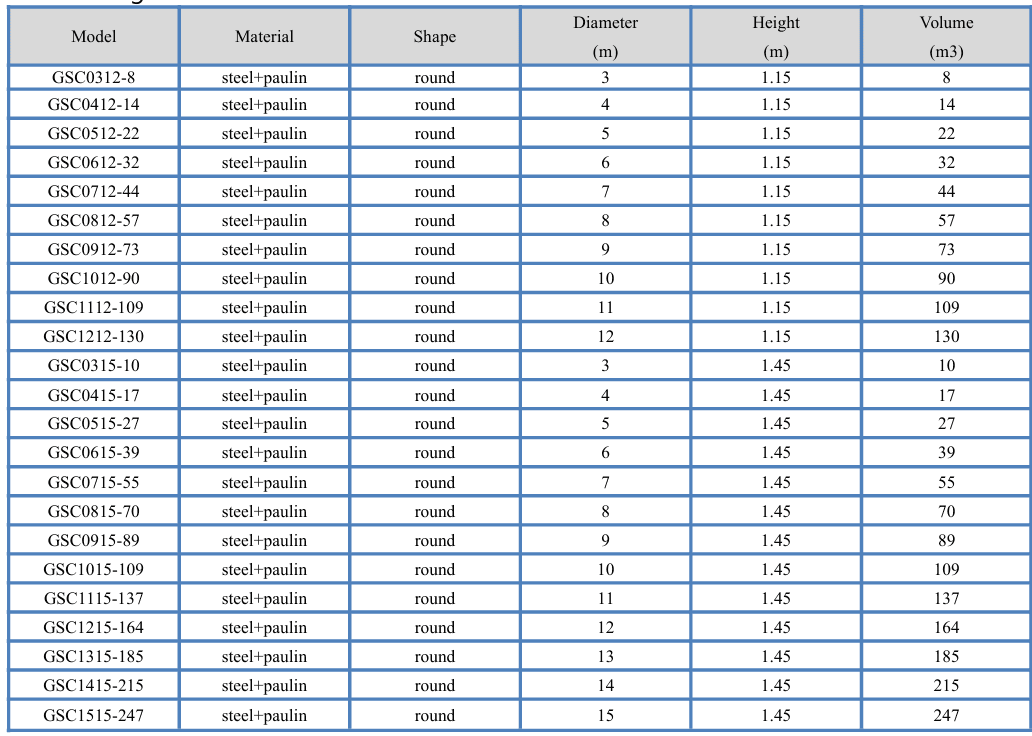

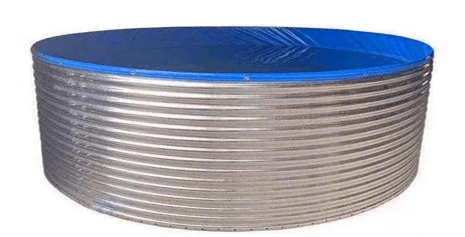

Galvanized Metal Tank

The galvanized metal tank is made from galvanized metal sheet and canvas, compared with cement tank, this tank can build into big size with much lower cost, can save a lot time for constructing and demounting, can build the tank without hardening the earth, it is very suitable for indoor and outdoor big fish farm construction.

Grow bed options

The above grow beds are manufactured out of rotationally moulded UV stabilised LLDPE which is food safe and wont leech BPA into your system water.

The beds can be used as DWC beds, gravel beds, or wicking beds and nest neatly into each other for minimizing space during transport. There are ridges along the sides and a strong flange around the top to be able to accommodate a support frame.

Made in South Africa, so delivery can be quick and there are many colour options.

LLDPE tank #HPA-405 dimensions

LLDPE tank #HPA-404 dimensions

Aquaponics starter kits

Aquaponic starter kits are ideal for home production and experimental or learning tools.

These are available with 1 grow bed, 2 grow beds and 4 grow beds and a 500 liter fish tank.

Fibreglass tanks

For commercial applications, it is more cost-effective to install the tanks on site. We can quote with 0n-site installation.

Modular tanks allow for cost effective transport to site

Broodstock and nursery tanks

Divided broodstock tanks are ideal for tilapia and carry 2 males and 8 females per segment, for a total of 80 broodstock. It can be suppled with or without the floor. Their volume is 10 cubic meters.

The smaller 5m3 tank can be used as a nursery tank.

Growout tanks

The smaller tank is 2.4m3 and the larger is 10m3.

The above two tanks are 15m3 and 20m3 fiberglass tanks that can be supplied with or without the floor.

The above two tanks are 29m3 and 58m3 fiberglass tanks that can be supplied with or without the floor. After the initial investment, the tanks give over a decade of service. Bottom and side drains can be added on request.

Other fiberglass tanks

Plain 5.7m3 tanks and swirl-type tanks with a sloped base are additional options.

More fiberglass media beds, deep water culture troughs, fish tanks and filters

Media bed, 1200x600x300mm

Deep water culture bed1200x1200x400mm

Media bed 2500x1200x250mm. Beds stack for easy transport.
Media beds, 1800x800x300mm
Media beds, 5000x1200x300mm
Media beds, 3000L x 960W x 450H (BT3000)
Media beds, 1250L x 800W x 325H (BT1250)

Round tanks

2000mm diameter, 1400mm high
1000 liter: 1010mm H x 1290 diameter (BT1000)
500 liter: 620mm H x 1290mm diameter (BT500)

1000 liter water trough tank

NTCT1000

1000 liter trough water tank — 1000 liter water trough tank

The above tank is robust and self-supporting.

The below 2750 liter tank requires steel straps or other support to hold water.

1000 liter Cone Bottom Tanks

1330mm diameter, 1100mm high.

Suitable for fish and may be used as a swirl or radial flow filter.
