Radial Flow Filter

Radial flow filters

South African-made

1000L

1330mm diameter, 1100mm high.

Suitable for removal of solids waste from fish tanks.

50mm Inlet, 50mm Outlet and 50mm Bottom tap for solids disposal.

radial_flow

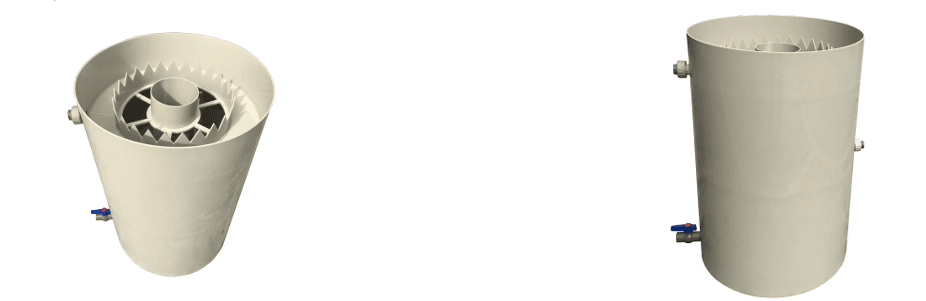

Imported radial flow settlers

radial-flow-settler1

The Radial Flow Settler (RFS) is a passive, gravity fed, pre-filtration device for particle removal from system effluent flows. RFS units are very effectively used for the removal of up to 85% of settleable solids from aquaculture effluent flows. They are also very effective in removing settleable solids such as sand and grit from fish farm supply flows. This is a very simple, energy neutral, proven device is in use on recirculating aquaculture systems, aquaponics and specialty filtration applications world-wide. RFS units have been found to provide approximately twice the TSS removal efficiency of swirl separators of identical size and surface-loading rate. Also, the use of an RFS unit vs. a swirl separator provided considerably reduced solids loading on the microscreen drum filter, which would be expected to reduce its backwash requirements.

radial-flow-settler-models
