Olympus Borescopes & Videoscopes

IPLEX Range

IPLEX Borescopes and Videoscopes are advanced inspection tools that provide high-resolution visual access to hard-to-reach areas. Ideal for industries like manufacturing, aerospace, and automotive, they allow users to inspect confined spaces, detect issues like cracks and corrosion, and improve maintenance efficiency—all without disassembly. With powerful lighting, durable design, and easy-to-use controls, these tools support accurate diagnostics and preventative maintenance.

Industrial Videoscopes

IPLEX G Lite

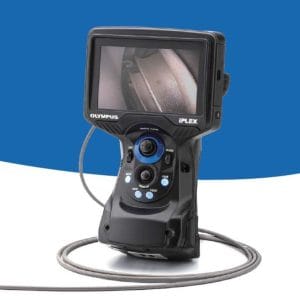

IPLEX G Lite Industrial Videoscope

The Portable, Powerful Videoscope

The IPLEX G Lite industrial videoscope packs powerful imaging capabilities into a small, rugged body. Lightweight and able to go almost anywhere, the IPLEX G Lite videoscope provides users working in challenging environments with a remote visual inspection tool that has the image quality and ease of use to get the job done.

Features

  • Fits comfortably in your hand- Ergonomically designed and weighing only 1.15 kg (2.5 pounds), the IPLEX G Lite videoscope can be carried to almost any job site and used comfortably.
  • Made to travel- The videoscope and its accessories fit neatly in a lightweight travel case small enough to fit under an airplane seat.
  • Durable- Designed to meet IP65 standards for protection against dust and water, and built to pass U.S. Department of Defense testing (MIL-STD), IPLEX G Lite videoscopes can be used in harsh conditions, including rain, high humidity, salt fog, dust, freezing rain, electromagnetic environments, and even explosive atmospheres.
  • Powerful measurement tools- IPLEX G Lite videoscopes are equipped with a scaler measurement tool that enables you to size objects using a reference defect. For more advanced functionality, add optional stereo measurement to size objects using precise three-dimensional coordinates.
  • Flexible UV and IR lighting options- Interchangeable ultraviolet (UV) and infrared(IR) lighting options are available to expand the videoscope’s capabilities. UV is used to detect fine scratches that are hard to see with the naked eye while IR illumination works well for capturing images in the dark.
  • Responsive joystick, precise movements- The IPLEX G Lite videoscope’s ergonomic design is complemented by TrueFeel articulation, making the joystick incredibly responsive. A light touch produces an immediate response and precise movement from the insertion tube so that it is easier to maneuver the scope.
  • Easy Data Sharing and Collaboration- There are two convenient wireless connectivity options.
    1. Send saved images and videos to a PC using the IPLEX desktop app for secure file transfer.
    2. Share live inspection images with iOS smartphones and tablets using the IPLEX Image Share app available in the App Store.
  • See clearly in oily environments- When inspecting in oily environments, such as the gearbox of a wind turbine, getting oil on the scope’s lens can make it difficult to see. The oil clearing tip adapter uses capillary action to draw oil away from the lens so that you get clearer images without having to stop, withdraw the insertion tube, clean the lens, and resume the inspection.

True to Your Image

  • Dynamic image optimization- The PulsarPic image processor constantly optimizes your images by reducing halation, balancing exposure, and optimizing gain quality.
  • Bright illumination- The IPLEX G Lite videoscope’s LED light source is twice as bright as its predecessor (IPLEX UltraLite), helping you locate problems and defects in dark areas and lighting up large spaces.
  • 60 frames per second (fps) video- Capture smooth videos with the videoscope’s high frame rate. If you’re recording a moving object, you can obtain clear videos with no stutter
  • Contrast matching- WiDER image processing increases the contrast of dark areas in your images to match that of bright areas, enabling you to see fine details throughout the entire image.
  • True colors and reduced noise- A noise reduction algorithm minimizes noise in dark videos and helps ensure accurate color reproduction.

IPLEX G Lite Specifications



IPLEX GX/GT

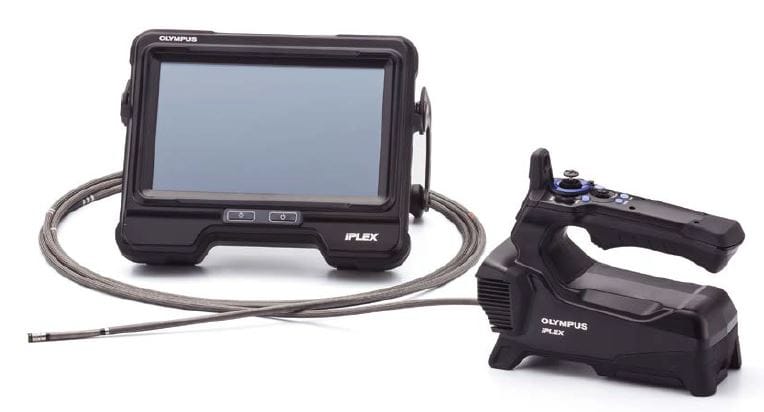

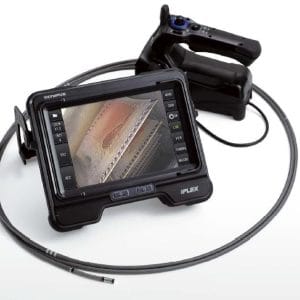

IPLEX GXGT Industrial Videoscope

Versatility and Power for Multiple Jobs

With interchangeable insertion tubes and light sources, an 8 inch touch screen, and advanced imaging features, the IPLEX GX/GT videoscope delivers an optimal balance of versatility, imaging capabilities, and ease of use.

Features

  • Precise Movements with a Light Touch- Responsive TrueFeel articulation enables you to control the scope’s tip with precise movement so
    that you can navigate to your target area quickly, and stay in position with locking capability. A light touch of the control helps minimize fatigue when working for long hours.
  • Bright Illumination- The LED light source of IPLEX GX/GT is 30% brighter than its predecessor (IPLEX RX/RT).
  • Crisp images-The videoscope uses a new noise reduction algorithm to make it easier to locate problems and defects in dark areas.
  • Smooth 60 fps video- Capture smooth videos with the videoscope’s
    high frame rate. If you are recording a moving object, you can obtain clear videos with no stutter.
  • Convenient Controls- The large monitor leaves plenty of room to display both your inspection image and quick control buttons. Most functions can be controlled using the touch screen, including the articulation. If you want to use the full screen to view images, the hot keys on the controller give you control over the most important functions.
  • Powerful Measurement at Your Fingertips- The videoscope is equipped with scalar measurement as a standard feature, enabling you to size objects using a reference defect. For more advanced functionality, upgrade to the stereo measurement option to size objects
    using precise three-dimensional coordinates.

  • Stream Inspection Images for Quick Decision Making- Using the recommended USB wireless LAN adaptor, images can be shared with colleagues using smartphones or tablets during the inspection. This helps make it easy to diagnose problems with the assistance of other inspectors.

  • Tested Tough- The videoscope is designed to meet IP65 standards for dust and water resistance and built to pass U.S. Department of Defense testing (MIL-STD) for protection against:
    -Drops of up to 1.2 meters (4 feet)
    -Vibration
    -Blowing rain
    -Dust
    -High humidity
    -Salt fog
    -Freezing rain
    -Electromagnetic environments

Interchangeable Scopes and Light Sources.
Modular Components Enable You to Adapt the Videoscope to Your Inspection Tasks

Scopes are available in 4 mm and 6 mm diameters with lengths up to10 meters (32 feet). Interchangeable illumination modules also allow you to change between White LED, UV, or IR.

  • Scope unit
    ∙ Scope diameter 6.0 mm: length 2.0 / 3.5 / 7.5 / 10 m
    ∙ Scope diameter 4.0 mm: length 2.0 / 3.5 m
  • Light sources
    ∙ White light: standard inspections
    ∙ Ultraviolet (UV): detect hairline cracks, lubricants
    ∙ Infrared (IR): view objects in dark areas
  • The scopes and illumination modules can be changed on-site quickly and easily, reducing downtime.

IPLEX GX/GT Specifiactions

IPLEX GAir

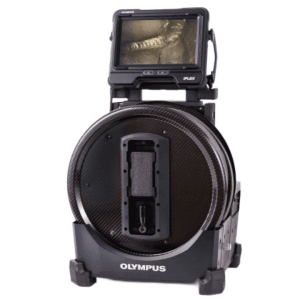

IPLEX GAir

Inspect Farther, Faster

Long-distance remote visual inspections are faster and more efficient with the IPLEXTM GAir videoscope. Thoughtfully designed to ease the challenges of long-distance inspections, the IPLEX GAir videoscope enables you to flexibly maneuver up to 30 meters (98 feet) through complex piping systems with multiple elbows and then examine your target with high-quality, wide-view images and bright LED illumination.

Features

  • Know your location- The gravity sensor automatically rotates live images regardless of the scope’s orientation, and the insertion length indicator enables you to track the insertion tube’s position.
  • Nimble through complex pipes- The uniquely designed scope guide head reduces friction and easily passes over joints between pipes while the universal push rod adaptor enables a smooth passage through pipes and elbows.
  • Precise articulation regardless of length- Pneumatic articulation with an integrated air compressor delivers fine control, and the Tapered Flex™ insertion tube balances stiffness and flexibility for easy maneuvering.
  • Quickly change scopes- The waterproof interchangeable scope unit enables you to do quick swaps with no special tools.
  • Comfortable viewing angle- Place the detachable LCD screen in an optimal position.
  • Easy to transport- The compact, wheeled carrying case is easy to move—when you’re ready to inspect, the wheels lock to keep the unit stationary.
  • Ultra-bright illumination- Powerful LEDs located in the distal end of the insertion tube light up large spaces without the intensity decay common to other long videoscopes
  • Long exposure- The long exposure mode enables a better probability of detection in very large spaces.
  • Efficient in oily environments- The oil-clearing tip adaptor draws oil away from the lens for clearer images and less time spent withdrawing the insertion tube to clean the lens.
  • Functional from afar- The remote controller enables you to operate the videoscope’s functions up to 100 m (328 ft) away, with optional transponder system.
  • Alert from distance- The remote control vibrates to alert you of a situation that could damage your videoscope, such as removing the insertion tube while articulated.
  • Wireless image sharing- The USB wireless LAN adapter enables you to share live images with other colleagues.

IPLEX GAir Specifications
