Abnormal Egg Detector

Egg testing, candler, check the development of the chick embryo

egg-candler

Manual egg candlers

These high lumen egg candlers are for manual use.

An egg candler is an essential tool during embryonic development to check if chick embryos are developing correctly. This saves a lot of time and money as you know which eggs stand the best chances of hatching. Egg candling during egg/chick incubation is a method to determine egg fertility.

Candling is a method used to observe the growth and development of a chick embryo inside an egg which uses a bright light source behind the egg to show details through the shell.

Candling detects bloody whites, blood spots, or meat spots, and enables observation of germ development. Candling is done in a darkened room with the egg held before a light.

Gently pick up one of the eggs and hold it up to the light, without looking directly at the light. Hold the larger end of the egg against the light, turning it slowly. Look inside the egg to observe the embryo inside. LED light sources like this battery powered candler are useful as they do not allow the embryo to get too hot.

  • Used to check development progress of eggs
  • Help to identify infertile or “dead in shells” eggs for removal
  • See the live embryo inside the egg as it develops
  • Lightweight and easy to use
  • Great for educational purposes and fun for kids

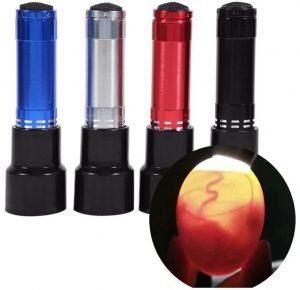

Battery powered egg candler

battery egg candler for chick embryo development
battery egg candler for chick embryo development

Battery type

3 x AAA (Not included)

Electric egg candlers

Single egg manual

Electric egg candler
Electric egg candler

Hand Held Electric egg candler - L adjustable angle
Hand Held Electric egg candler – L adjustable angle


Bulk egg checking egg candler for 30 eggs

30 egg electrical egg candler
30 egg electrical egg candler



Orka candler

egg-candler-orka

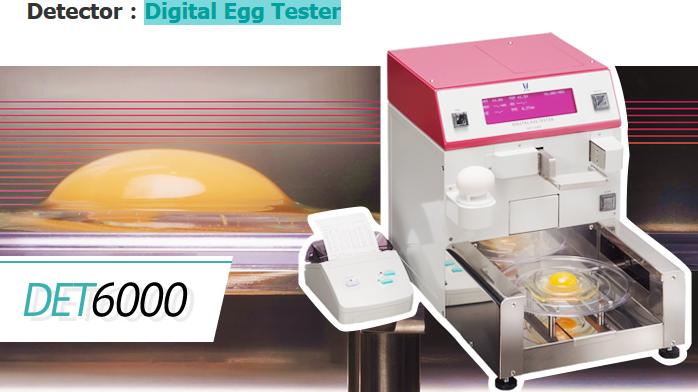

Digital Egg Tester

haugh-egg-tester

DET6000 can all by itself measure, display and print out data of Haugh  unit, egg weight, eggshell strength, thickness and yolk color to show  properties and quality of egg.

Specifications

Code

DET6000

Components

Egg tester / Printer / two clear trays / original mirror€€/€€Eggshell thicknes gauge *

Measurements

280W; 360H; 450D mm

Weight

20kg

Power

AC100V-240V 90W

Testing categories

Haugh unit / egg weight / shell strengh / yolk color / shell thickness*

*optional

Automated egg testing for faulty and abnormal eggs

It can instantly detect brown eggs which are very difficult for human  eyes. Even when White and Brown eggs are mixed, it adjusts the detection level automatically for each.

abnormal-egg-tester

It counts the data of detected eggs. It always indicates each number of  eggs and rejection rate such as blood, damaged and no yolk eggs on the  screen. Records blood, damaged, no yolk, light color, damaged and rotten.

Models

Specifications

Code

ABD904

ABD902

ABD901

Capacity

120,000 eggs/hour max.

80,000 eggs/hour max.

40,000 eggs/hour max.

Power

1-phase 200V 4.2A max.

1-phase 200V 3.3A max.

Working environment

 ambient temperature 10-35°C
ambient humidity 20-70% *no condensation

Detection level

8 variable detection levels
